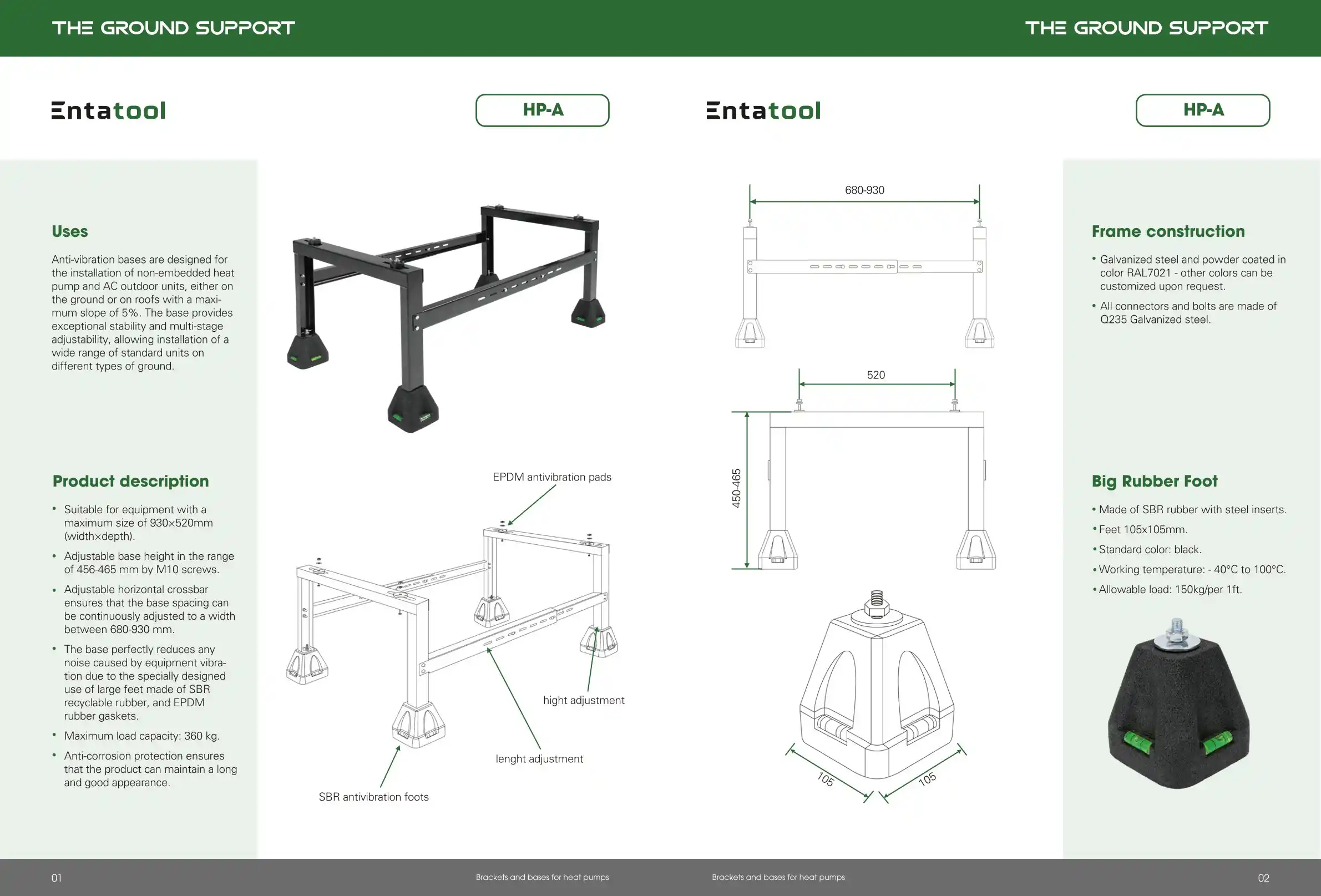

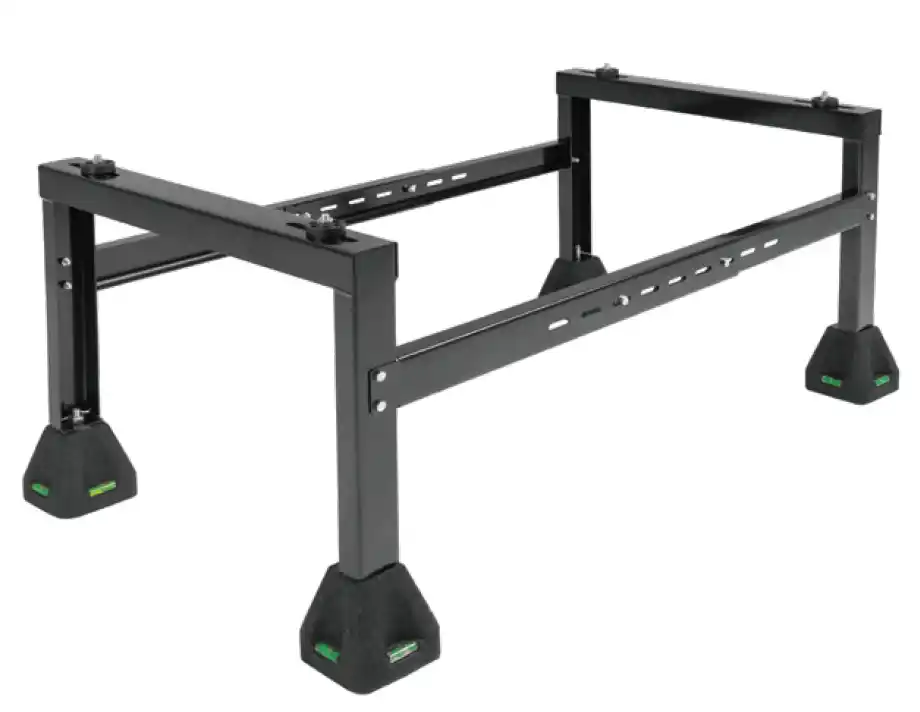

Anti-vibration bases are designed for the installation of non-embedded heat pump and AC outdoor units, either on the ground or on roofs with a maximum slope of 5%. The base provides exceptional stability and multi-stage adjustability, allowing installation of a wide range of standard units on different types of ground.

Suitable for equipment with a maximum size of 930×520mm (width×depth).

Adjustable base height in the range of 456-465 mm by M10 screws.

Adjustable horizontal crossbar ensures that the base spacing can be continuously adjusted to a width between 680-930 mm.

The base perfectly reduces any noise caused by equipment vibration
due to the specially designed use of large feet made of SBR recyclable rubber, and EPDM rubber gaskets.

Maximum load capacity: 360 kg.

Anti-corrosion protection ensures that the product can maintain a long
and good appearance.
